Understanding the reporting data model: Facts

Facts are provided by the Reporting Data Model. Each fact table provides access to only information allowed by the configuration of the report.

Understanding facts

Any vulnerability status, severity or category filters will be applied in the facts, only allowing those results, findings, and counts for vulnerabilities in the scope to be exposed. Similarly, only assets within the scope of the report configuration are made available in the fact tables. By default, all facts are interpreted to be asset-centric, and therefore expose information for all assets in the scope of the report, regardless as to whether they were configured to be in scope with the use of an asset, scan, asset group, or site selection.

Data model 2.0.0 exposes information about linking assets across sites.

All previous information is still available, and in the same format. As of data model 2.0.0, there is a sites column in the dim_asset dimension that lists the sites to which an asset belongs.

For each fact, a dimensional star or snowflake schema is provided. For brevity and readability, only one level in a snowflake schema is detailed, and only two levels of dimensions are displayed. For more information on the attributes of these dimensions, refer to the Dimensions section below.

When dates are displayed as measures of facts, they will always be converted to match the time zone specified in the report configuration.

Only data from fully completed scans of assets are included in the facts. Results from aborted or interrupted scans will not be included.

Common measures

It will be helpful to keep in mind some characteristics of certain measures that appear in the following tables.

asset_compliance - This attribute measures the ratio of assets that are compliant with the policy rule to the total number of assets that were tested for the policy rule.
assets - This attribute measures the number of assets within a particular level of aggregation.
compliant_assets - This attribute measures the number of assets that are compliant with the policy rule (taking into account policy rule overrides).
exploits - This attribute measures the number of distinct exploit modules that can be used exploit vulnerabilities on each asset. When the level of grain aggregates multiple assets, the total is the summation of the exploits value for each asset. If there are no vulnerabilities found on the asset or there are no vulnerabilities that can be exploited with a exploit module, the count will be zero.
malware_kits - This attribute measures the number of distinct malware kits that can be used exploit vulnerabilities on each asset. When the level of grain aggregates multiple assets, the total is the summation of the malware kits value for each asset. If there are no vulnerabilities found on the asset or there are no vulnerabilities that can be exploited with a malware kit, the count will be zero.
noncompliant_assets - This attribute measures the number of assets that are not compliant with the policy rule (taking into account policy rule overrides).
not_applicable_assets - This attribute measures the number of assets that are not applicable for the policy rule (taking into account policy rule overrides).
riskscore - This attribute measures the risk score of each asset, which is based on the vulnerabilities found on that asset. When the level of grain aggregates multiple assets, the total is the summation of the riskscore value for each asset.
rule_compliance - This attribute measures the ratio of policy rule test result that are compliant or not applicable to the total number of rule test results.
vulnerabilities - This attribute measures the number of vulnerabilities discovered on each asset. When the level of grain aggregates multiple assets, the total is the summation of the vulnerabilities on each asset. If a vulnerability was discovered multiple times on the same asset, it will only be counted once per asset. This count may be zero if no vulnerabilities were found vulnerable on any asset in the latest scan, or if the scan was not configured to perform vulnerability checks (as in the case of discovery scans). The vulnerabilities count is also provided for each severity level:
- Critical: The number of vulnerabilities that are critical.
- Severe: The number of vulnerabilities that are severe.
- Moderate: The number of vulnerabilities that are moderate.
vulnerabilities_with_exploit - This attribute measures the total number of a vulnerabilities on all assets that can be exploited with a published exploit module. When the level of grain aggregates multiple assets, the total is the summation of the vulnerabilities_with_exploit value for each asset. This value is guaranteed to be less than the total number of vulnerabilities. If no vulnerabilities are present, or none are subject to an exploit, the value will be zero.
vulnerabilities_with_malware_kit - This attribute measures the number of vulnerabilities on each asset that are exploitable with a malware kit. When the level of grain aggregates multiple assets, the total is the summation of the vulnerabilities_with_malware_kit value for each asset. This value is guaranteed to be less than the total number of vulnerabilities. If no vulnerabilities are present, or none are subject to a malware kit, the value will be zero.
vulnerability_instances - This attribute measures the number of occurrences of all vulnerabilities found on each asset. When the level of grain aggregates multiple assets, the total is the summation of the vulnerability_instances value for each asset. This value will count each instance of a vulnerability on each asset. This value may be zero if no instances were tested or found vulnerable (e.g. discover scans).

Attributes with a timestamp datatype, such as a first_discovered, honor the time zone specified in the report configuration.

Fact_all

fact_all

Level of Grain: The summary of the current state of all assets within the scope of the report.

Fact Type: accumulating snapshot

Description: Summaries of the latest vulnerability details across the entire report. This is an accumulating snapshot fact that updates after every scan of any asset within the report completes. This fact will include the data for the most recent scan of each asset that is contained within the scope of the report. As the level of aggregation is all assets in the report, this fact table is guaranteed to return one and only one row always.

Columns

Column	Data Type	Nullable	Description
`vulnerabilities`	bigint	No	The number of vulnerabilities across all assets.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities across all assets.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities across all assets.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities across all assets.
`malware_kits`	integer	No	The number of malware kits across all assets.
`exploits`	integer	No	The number of exploit modules across all assets.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a malware kit across all assets.
`vulnerabilities_with_exploit`	integer	No	The number of vulnerabilities with an exploit module across all assets.
`vulnerability_instances`	bigint	No	The number of vulnerability instances across all assets.
`riskscore`	double precision	No	The risk score across all assets.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.

Dimensional model

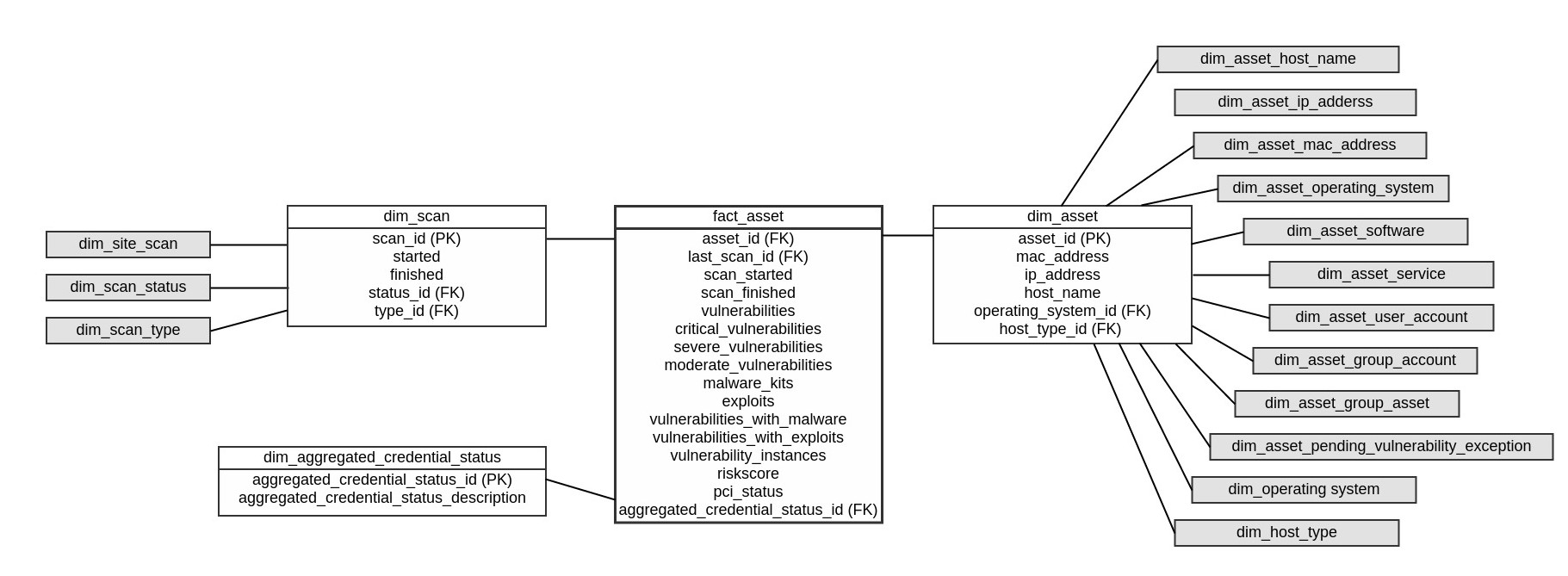

fact_asset

Level of Grain: An asset and its current summary information.

Fact Type: accumulating snapshot

Description: The fact_asset fact table provides the most recent information for each asset within the scope of the report. For every asset in scope there will be one record in the fact table.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`last_scan_id`	bigint	No	The identifier of the scan with the most recent information being summarized.	`dim_scan`
`scan_started`	timestamp with time zone	No	The date and time at which the latest scan for the asset started.
`scan_finished`	timestamp with time zone	No	The date and time at which the latest scan for the asset completed.
`vulnerabilities`	bigint	No	The number of all distinct vulnerabilities on the asset
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities on the asset.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities on the asset.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities on the asset.
`malware_kits`	integer	No	The number of malware kits associated with any vulnerabilities discovered on the asset.
`exploits`	integer	No	The number of exploits associated with any vulnerabilities discovered on the asset.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered on the asset.
`vulnerabilities_with_exploit`	integer	No	The number of vulnerabilities with a known exploit discovered on the asset.
`vulnerability_instances`	bigint	No	The number of vulnerability instances discovered on the asset
`riskscore`	double precision	No	The risk score of the asset.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.
`aggregated_credential_status_id`	integer	No	The status aggregated across all available services for the given asset in the given scan.	`dim_aggregated_credential_status`

Dimensional model

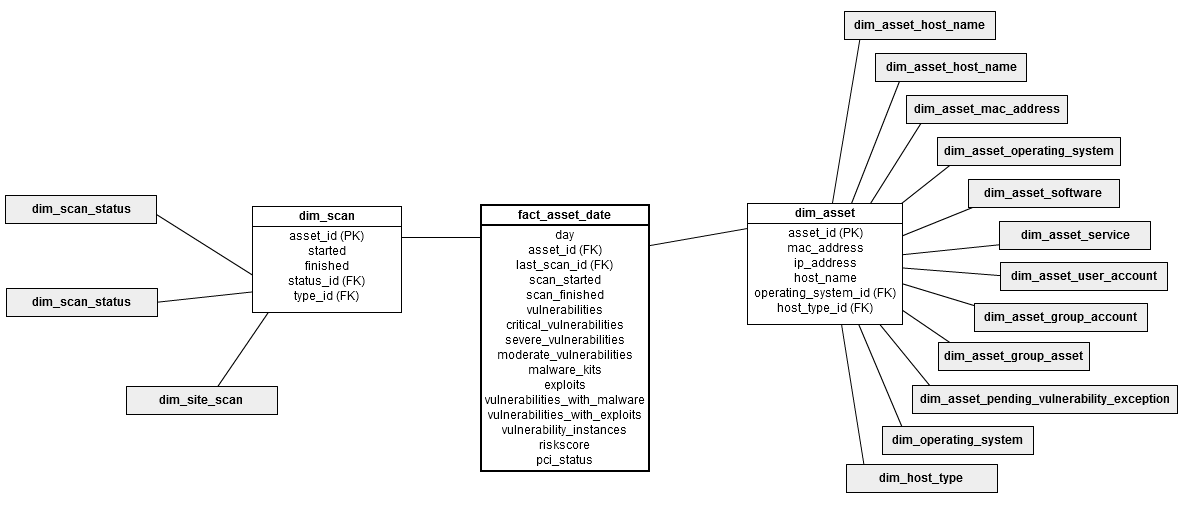

fact_asset_date (startDate, endDate, dateInterval)

Added in version 1.1.0

Level of Grain: An asset and its summary information on a specific date.

Fact Type: periodic snapshot

Description: This fact table provides a periodic snapshot for summarized values on an asset by date. The fact table takes three dynamic arguments, which refine what data is returned. Starting from startDate and ending on endDate, a summarized value for each asset in the scope of the report will be returned for every dateInterval period of time. This will allow trending on asset information by a customizable interval of time. In terms of a chart, startDate represents the lowest value in the range, the endDate the largest value in the range, and the dateInterval is the separation of the ticks of the range axis. If an asset did not exist prior to a summarization date, it will have no record for that date value. The summarized values of an asset represent the state of the asset in the most recent scan prior to the date being summarized; therefore, if an asset has not been scanned before the next summary interval, the values for the asset will remain the same. For example, fact_asset_date(‘2013-01-01’, ‘2014-01-01’, INTERVAL ‘1 month’) will return a row for each asset for every month in the year 2013.

Arguments

Column	Data Type	Description
`startDate`	date	The first date to return summarizations for.
`endDate`	date	The last date to return summarizations for.
`dateInterval`	interval	The interval between the start and end date to return summarizations for.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`last_scan_id`	bigint	No	The identifier of the scan with the most recent information being summarized.	`dim_scan`
`scan_started`	timestamp with time zone	No	The date and time at which the latest scan for the asset started.
`scan_finished`	timestamp with time zone	No	The date and time at which the latest scan for the asset completed.
`vulnerabilities`	bigint	No	The number of all distinct vulnerabilities on the asset.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities on the asset.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities on the asset.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities on the asset.
`malware_kits`	integer	No	The number of malware kits associated with any vulnerabilities discovered on the asset.
`exploits`	integer	No	The number of exploits associated with any vulnerabilities discovered on the asset.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered on the asset.
`vulnerabilities_with_exploit`	integer	No	The number of vulnerabilities with a known exploit discovered on the asset.
`vulnerability_instances`	bigint	No	The number of vulnerability instances discovered on the asset
`riskscore`	double precision	No	The risk score of the asset.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.
`day`	date	No	The date of the summarization of the asset.

Dimensional model

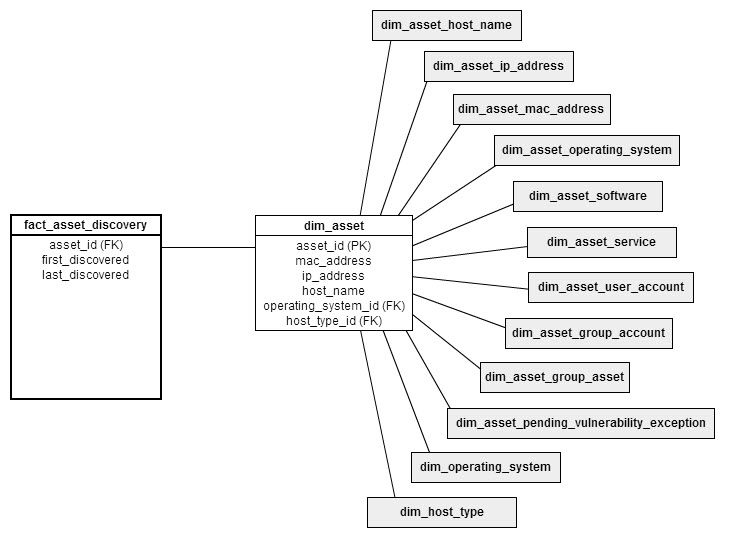

fact_asset_discovery

Level of Grain: A snapshot of the discovery dates for an asset.

Fact Type: accumulating snapshot

Description: The fact_asset_discovery fact table provides an accumulating snapshot for each asset within the scope of the report and details when the asset was first and last discovered. The discovery date is interpreted as the precise time that the asset was first communicated with during a scan, during the discovery phase of the scan. If an asset has only been scanned once both the first_discovered and last_discovered dates will be the same.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	big_int	No	The identifier of the asset.	`dim_asset`
`first_discovered`	timestamp without timezone	No	The date and time the asset was first discovered during any scan.
`last_discovered`	timestamp without timezone	No	The date and time the asset was last discovered during any scan.

Dimensional model

Asset Groups

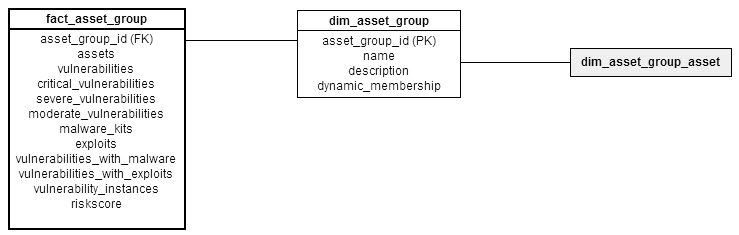

fact_asset_group

Level of Grain: An asset group and its current summary information.

Fact Type: accumulating snapshot

Description: The fact_asset_group fact table provides the most recent information for each asset group within the scope of the report. Every asset group that any asset within the scope of the report is currently a member of will be available within the scope (not just those specified in the configuration of the report). There will be one fact record for every asset group in the scope of the report. As scans are performed against assets, the information in the fact table will accumulate the most recent information for the asset group (including discovery scans).

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_group_id (as named in versions 1.2.0 and later of the data model) group_id (as named in version 1.1.0)`	bigint	No	The identifier of the asset group.	`dim_asset_group`
`assets`	bigint	No	The number of distinct assets associated to the asset group. If the asset group contains no assets, the count will be zero.
`vulnerabilities`	bigint	No	The number of all vulnerabilities discovered on assets in the asset group.
`critical_vulnerabilities`	bigint	No	The number of all critical vulnerabilities discovered on assets in the asset group.
`severe_vulnerabilities`	bigint	No	The number of all severe vulnerabilities discovered on assets in the asset group.
`moderate_vulnerabilities`	bigint	No	The number of all moderate vulnerabilities discovered on assets in the asset group.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered on assets in the asset group.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered on assets in the asset group.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered on assets in the asset group.
`vulnerabilities_with_exploit`	integer	No	The number of vulnerabilities with a known exploit discovered on assets in the asset group.
`vulnerability_instances`	bigint	No	The number of vulnerability instances discovered on assets in the asset group.
`riskscore`	double precision	No	The risk score of the asset group.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.

Dimensional model

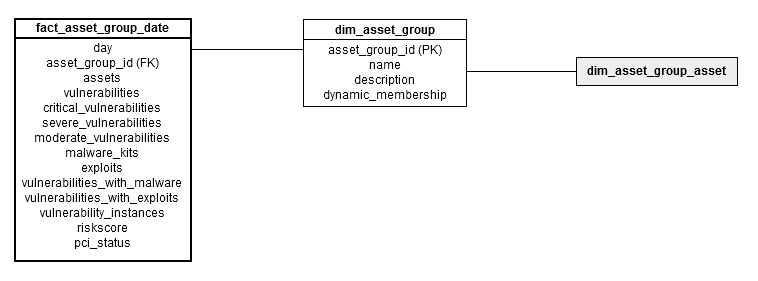

fact_asset_group_date (startDate, endDate, dateInterval)

Added in version 1.1.0

Level of Grain: An asset group and its summary information on a specific date.

Fact Type: periodic snapshot

Description: This fact table provides a periodic snapshot for summarized values on an asset group by date. The fact table takes three dynamic arguments, which refine what data is returned. Starting from startDate and ending on endDate, a summarized value for each asset group in the scope of the report will be returned for every dateInterval period of time. This will allow trending on asset group information by a customizable interval of time. In terms of a chart, startDate represents the lowest value in the range, the endDate the largest value in the range, and the dateInterval is the separation of the ticks of the range axis. If an asset group did not exist prior to a summarization date, it will have no record for that date value. The summarized values of an asset group represent the state of the asset group prior to the date being summarized; therefore, if the assets in an asset group have not been scanned before the next summary interval, the values for the asset group will remain the same. For example, fact_asset_group_date(‘2013-01-01’, ‘2014-01-01’, INTERVAL ‘1 month’) will return a row for each asset group for every month in the year 2013.

Arguments

Column	Data Type	Nullable	Description
`startDate`	date	No	The first date to return summarizations for.
`endDate`	date	No	The last date to return summarizations for.
`dateInterval`	interval	No	The interval between the start and end date to return summarizations for.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`group_id`	bigint	No	The identifier of the asset group.	`dim_asset_group`
`assets`	bigint	No	The number of distinct assets associated to the asset group. If the asset group contains no assets, the count will be zero.
`vulnerabilities`	bigint	No	The number of all vulnerabilities discovered on assets in the asset group.
`critical_vulnerabilities`	bigint	No	The number of all critical vulnerabilities discovered on assets in the asset group.
`severe_vulnerabilities`	bigint	No	The number of all severe vulnerabilities discovered on assets in the asset group.
`moderate_vulnerabilities`	bigint	No	The number of all moderate vulnerabilities discovered on assets in the asset group.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered on assets in the asset group.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered on assets in the asset group.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered on assets in the asset group.
`vulnerabilities_with_exploit`	integer	No	The number of vulnerabilities with a known exploit discovered on assets in the asset group.
`vulnerability_instances`	bigint	No	The number of vulnerability instances discovered on assets in the asset group.
`riskscore`	double precision	No	The risk score of the asset group.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.
`day`	date	No	The date of the summarization of the asset.

Dimensional model

fact_asset_group_policy_date

Fact Type: Periodic snapshot

Description: This fact table provides a periodic snapshot for summarized policy values on an asset group by date. The fact table takes three dynamic arguments, which refine what data is returned. Starting from startDate and ending on endDate, the summarized policy value for each asset group in the scope of the report will be returned for every dateInterval period of time. This will allow trending on asset group information by a customizable interval of time. In terms of a chart, startDate represents the lowest value in the range, the endDate the largest value in the range, and the dateInterval is the separation of the ticks of the range axis. If an asset group did not exist prior to a summarization date, it will have no record for that date value. The summarized policy values of an asset group represent the state of the asset group prior to the date being summarized; therefore, if the assets in an asset group have not been scanned before the next summary interval, the values for the asset group will remain the same.

Arguments

Column	Data Type	Nullable	Description
`startDate`	date	No	The first date to return summarizations for.
`endDate`	date	No	The last date to return summarizations for.
`dateInterval`	interval	No	The interval between the start and end dates to return summarizations for.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`group_id`	bigint	Yes	The unique identifier of the asset group.	`dim_asset`
`day`	date	No	The date which the summarized policy scan results snapshot is taken.
`policy_id`	bigint	Yes	The unique identifier of the policy within a scope.	`dim_policy`
`scope`	text	Yes	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.	`dim_policy`
`assets`	integer	Yes	The total number of assets that are in the scope of the report and associated to the asset group.
`compliant_assets`	integer	Yes	The number of assets associated to the asset group that have not failed any while passed at least one policy rule test.
`noncompliant_assets`	integer	Yes	The number of assets associated to the asset group that have failed at least one policy rule test.
`not_applicable_assets`	integer	Yes	The number of assets associated to the asset group that have neither failed nor passed at least one policy rule test.
`rule_compliance`	numeric	Yes	The ratio of rule test results that are compliant with or not applicable to the total number of rule test results.

Asset Policy

fact_asset_policy

Added in version 1.2.0

Level of Grain: A policy result on an asset

Fact Type: accumulating snapshot

Description: This table provides an accumulating snapshot of policy test results on an asset. It displays a record for each policy that was tested on an asset in its most recent scan. Only policies scanned within the scope of report are included.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`last_scan_id`	bigint	No	The identifier of the scan.	`dim_scan`
`policy_id`	bigint	Yes	The unique identifier of the policy within a scope.	`dim_policy`
`scope`	text	Yes	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.	`dim_policy`
`date_tested`	timestamp without timezone	No	The end date and time for the scan of the asset that was tested for the policy, in the time zone specified in the report configuration.
`compliant_rule`	bigint	No	The total number of each policy’s rules in which all assets are compliant with the most recent scan.
`noncompliant_rules`	bigint		The total number of each policy’s rules for which at least one asset failed in the most recent scan.
`not_applicable_rules`	bigint		The total number of each policy’s rules which at least one asset failed in the most recent scan.
`rule_compliance`	numeric		The ratio of policy rule test results that are compliant or not applicable to the total number of rule test results.

Dimensional model

fact_asset_policy_date

Added in version 1.3.0

Fact Type: Periodic snapshot

Description: This fact table provides a periodic snapshot for summarized policy values on an asset by date. The fact table takes three dynamic arguments, which refine what data is returned. Starting from startDate and ending on endDate, the summarized policy value for each asset in the scope of the report will be returned for every dateInterval period of time. This will allow trending on asset information by a customizable interval of time. In terms of a chart, startDate represents the lowest value in the range, the endDate the largest value in the range, and the dateInterval is the separation of the ticks of the range axis. If an asset did not exist prior to a summarization date, it will have no record for that date value. The summarized policy values of an asset represent the state of the asset prior to the date being summarized; therefore, if the assets in an asset group have not been scanned before the next summary interval, the values for the asset will remain the same.

Arguments

Column	Data Type	Nullable	Description
`startDate`	date	No	The first date to return summarizations for.
`endDate`	date	No	The last date to return summarizations for.
`dateInterval`	interval	No	The interval between the start and end dates to return summarizations for.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	Yes	The unique identifier of the asset.	`dim_asset`
`day`	date	No	The date which the summarized policy scan results snapshot is taken.
`scan_id`	bigint	Yes	The unique identifier of the scan.	`dim_scan`
`policy_id`	bigint	Yes	The unique identifier of the policy.	`dim_policy`
`scope`	text	Yes	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.
`date_tested`	timestamp without timezone	Yes	The time the asset was tested with the policy rules.
`compliant_rules`	integer	Yes	The number of rules that all assets are compliant with in the scan.
`noncompliant_rules`	integer	Yes	The number of rules that at least one asset failed in the scan.
`not_applicable_rules`	integer	Yes	The number of rules that are not applicable to the asset.
`rule_compliance`	numeric	Yes	The ratio of rule results that are compliant or not applicable to the total number of rule test results.

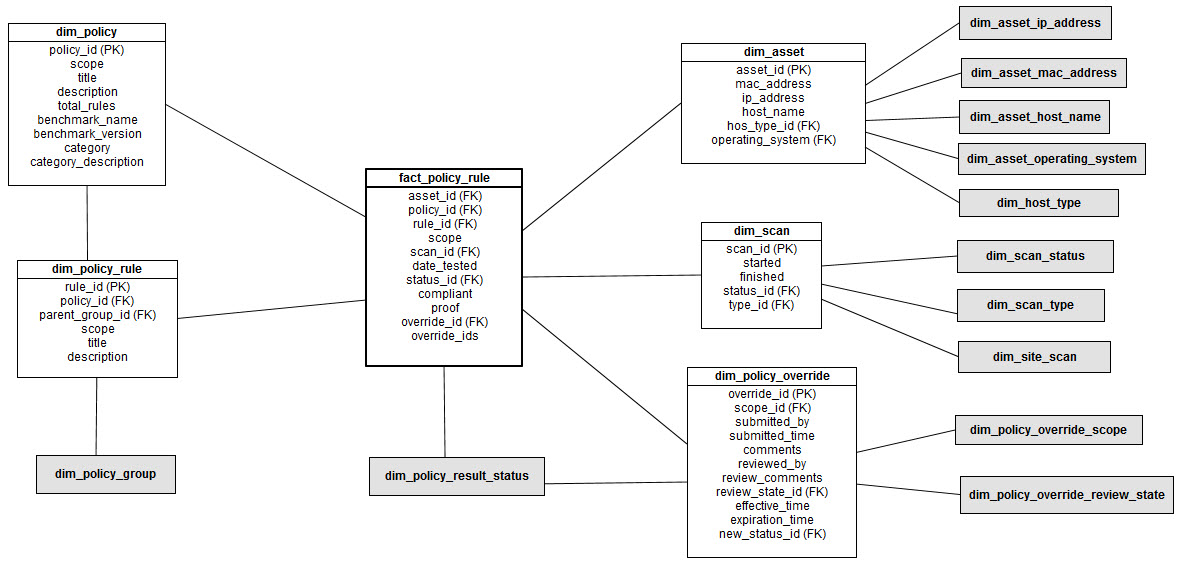

fact_asset_policy_rule

Added in version 1.3.0, updated in version 2.0.0

Level of Grain: A policy rule result on an asset

Fact Type: accumulating snapshot

Description: This table provides the rule results of the most recent policy scan for an asset within the scope of the report. For each rule, only assets that are subject to that rule and that have a result in the most recent scan are counted.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`policy_id`	bigint	No	The identifier of the policy.	`dim_policy`
`scope`	text	No	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.
`rule_id`	bigint	No	The identifier of the policy rule.	`dim_policy_rule`
`date_tested`	timestamp without timezone		The end date and time for the scan of the asset that was tested for the policy, in the time zone specified in the report configuration.
`status_id`	character(1)	No	The identifier of the status for the policy rule finding on the asset (taking into account policy rule overrides).	`dim_policy_result_status`
`compliance`	boolean	No	Whether the asset is compliant with the rule. True if and only if all of the policy checks for this rule have not failed, or the rule is overridden with the value true on the asset.
`proof`	text	Yes	The proof of the policy checks on the asset.
`override_id`	bigint	Yes	The unique identifier of the policy rule override that is applied to the rule on an asset. If multiple overrides apply to the rule at different levels of scope, the identifier of the override having the true effect on the rule (latest override) is returned.	`dim_policy_rule_override`
`override_ids`	bigint[]	Yes	The unique identifiers of the policy rule override that are applied to the rule on an asset. If multiple overrides apply to the rule at different levels of scope, the identifier of each override is returned in a comma-separated list.	`dim_policy_rule_override`
`last_scan_id`	bigint	No	The identifier of the scan with the most recent information being summarized.	`dim_scan`

Dimensional model

Asset Scans

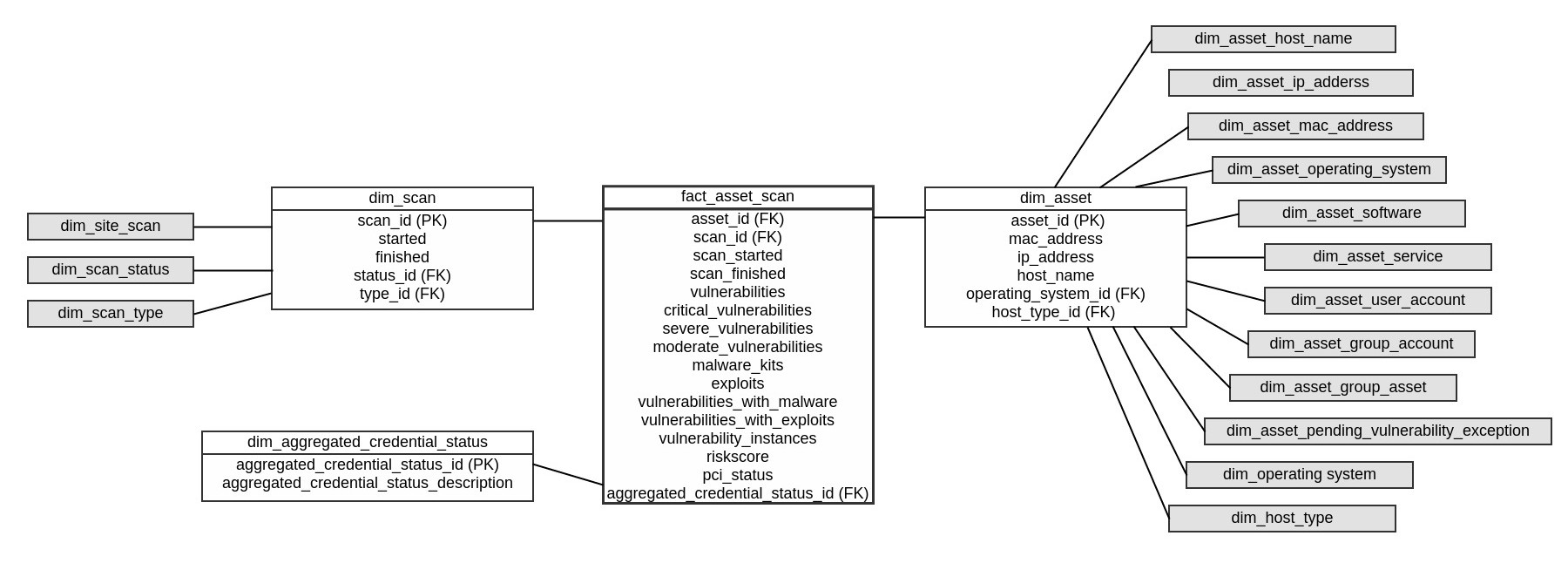

fact_asset_scan

Level of Grain: A summary of a completed scan of an asset.

Fact Type: transaction

Description: The fact_asset_scan transaction fact provides summary information of the results of a scan for an asset. A fact record will be present for every asset and scan in which the asset was fully scanned in. Only assets configured within the scope of the report and vulnerabilities filtered within the report will take part in the accumulated totals. If no vulnerabilities checks were performed during the scan, for example as a result of a discovery scan, the vulnerability related counts will be zero.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scan_id`	bigin	No	The identifier of the scan.	`dim_scan`
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`scan_started`	timestamp without timezone	No	The time at which the scan for the asset was started.
`scan_finished`	timestamp without timezone	No	The time at which the scan for the asset completed.
`vulnerabilities`	bigint	No	The number of vulnerabilities found on the asset during the scan.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities found of the asset during the scan.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities found of the asset during the scan.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities found of the asset during the scan.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered during the scan.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered during the scan.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered during the scan.
`vulnerabilities_with_exploits`	integer	No	The number of vulnerabilities with a known exploit discovered during the scan.
`vulnerability_instances`	bigint	No	The number of vulnerability instances found discovered during the scan.
`riskscore`	double precision	No	The risk score for the scan.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.
`aggregated_credential_status_id`	integer	No	The status aggregated across all available services for the given asset in the scan.

Dimensional model

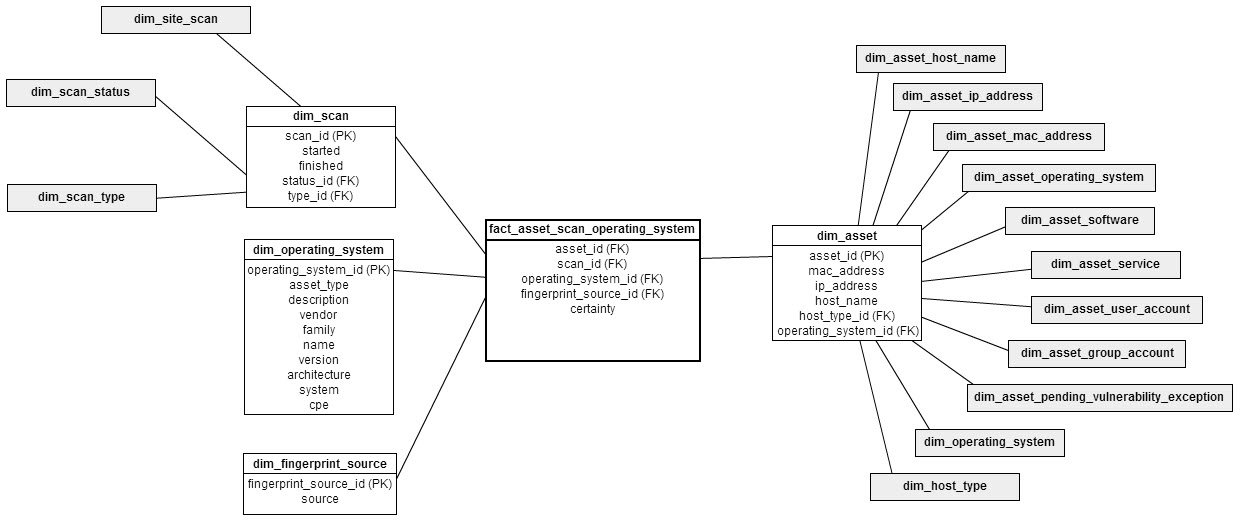

fact_asset_scan_operating_system

Level of Grain: An operating system fingerprint on an asset in a scan.

Fact Type: transaction

Description: The fact_asset_operating_system fact table provides the operating systems fingerprinted on an asset in a scan. The operating system fingerprints represent all the potential fingerprints collected during a scan that can be chosen as the primary or best operating system fingerprint on the asset. If an asset had no fingerprint acquired during a scan, it will have a record with values indicating an unknown fingerprint.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scan_id`	bigin	No	The identifier of the scan.	`dim_scan`
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`operating_system_id`	bigint	No	The identifier of the operating system that was fingerprinted on the asset in the scan. If a fingerprint was not found, the value will be -1.	`dim_operating_system`
`fingerprint_source_id`	integer	No	The identifier of the source that was used to acquire the fingerprint. If a fingerprint was not found, the value will be -1.	`dim_fingerprint_source`
`certainty`	real	No	A value between 0 and 1 that represents the confidence level of the fingerprint. If a fingerprint was not found, the value will be 0.

Dimensional model

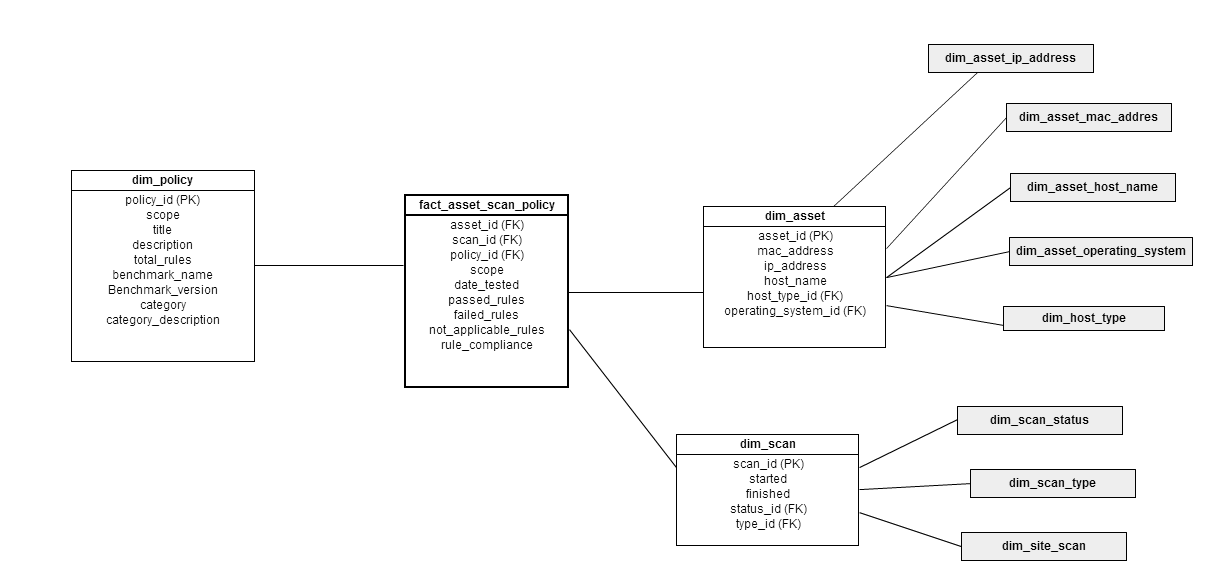

fact_asset_scan_policy

Level of Grain: A policy result for an asset in a scan

Fact Type: transaction

Description: This table provides the details of policy test results on an asset during a scan. Each record provides the policy test results for an asset for a specific scan. Only policies within the scope of report are included.

As of version 1.3.0, passed_rules and failed_rules are now called compliant_rules and noncompliant_rules.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scan_id`	bigin	No	The identifier of the scan.	`dim_scan`
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`policy_id`	bigint	No	The identifier of the policy.	`dim_policy`
`scope`	text	No	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.
`date_tested`	timestamp without timezone		The end date and time for the scan of the asset that was tested for the policy, in the timezone specified in the report configuration.
`compliant_rules`	bigint		The total number of each policy’s rules for which the asset passed in the most recent scan.
`noncompliant_rules`	bigint		The total number of each policy’s rules for which the asset failed in the most recent scan.
`not_applicable_rules`	bigint		The total number of each policy’s rules that were not applicable to the asset in the most recent scan.
`rule_compliance`	numeric		The ratio of the policy rule test result that are compliant or not applicable to the total number of rule test results.

Dimensional model

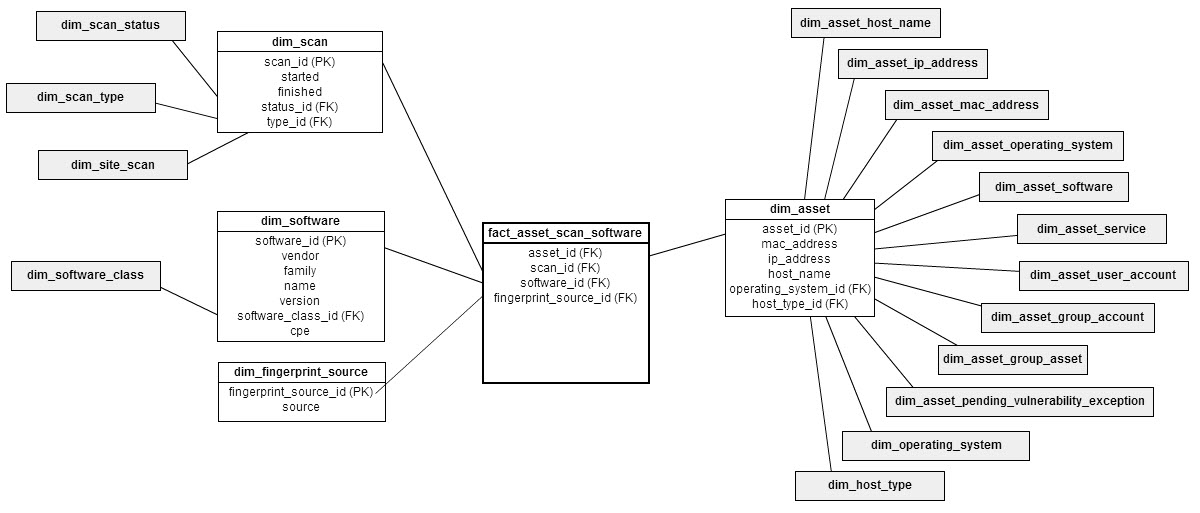

fact_asset_scan_software

Level of Grain: A fingerprint for an installed software on an asset in a scan.

Fact Type: transaction

Description: The fact_asset_scan_software fact table provides the installed software packages enumerated or detected during a scan of an asset. If an asset had no software packages enumerated in a scan there will be no records in this fact.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scan_id`	bigin	No	The identifier of the scan.	`dim_scan`
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`software_id`	bigint	No	The identifier of the software fingerprinted.	`dim_software`
`fingerprint_source_id`	integer	No	The identifier of the source that was used to acquire the fingerprint. If a fingerprint was not found, the value will be -1.	`dim_fingerprint_source`

Dimensional model

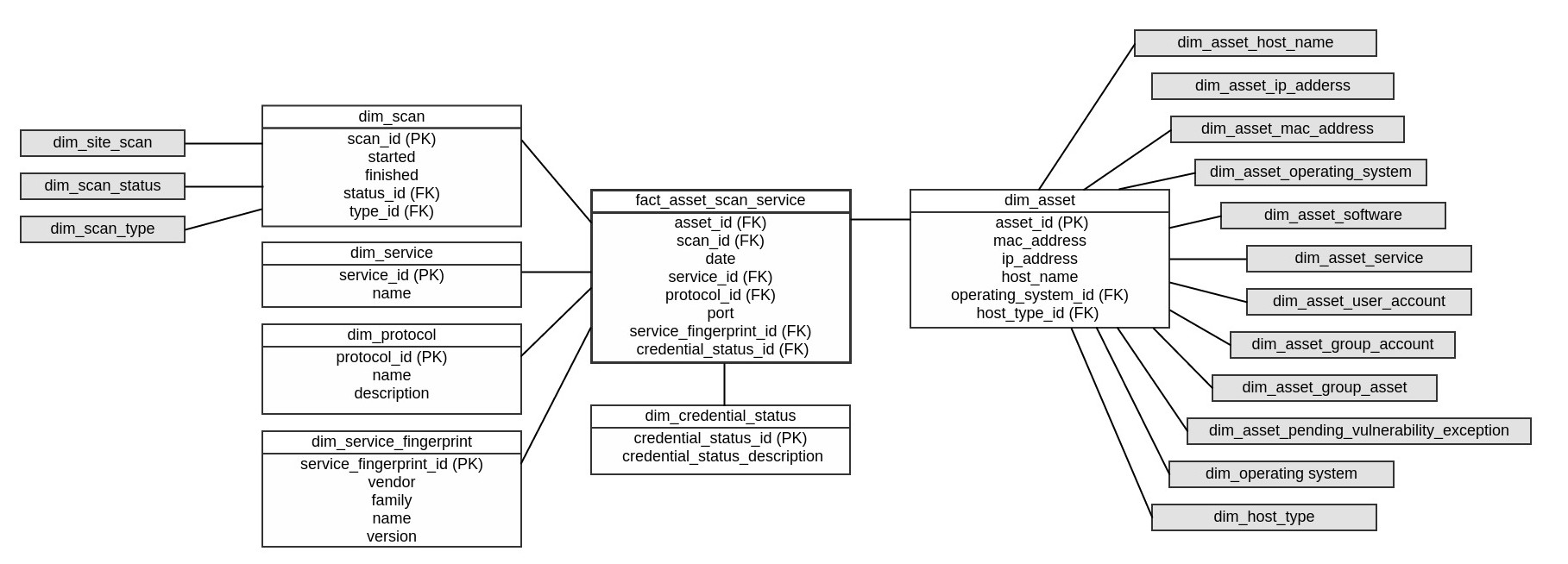

fact_asset_scan_service

Level of Grain: A service detected on an asset in a scan.

Fact Type: transaction

Description: The fact_asset_scan_service fact table provides the services detected during a scan of an asset. If an asset had no services enumerated in a scan there will be no records in this fact.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scan_id`	bigin	No	The identifier of the scan.	`dim_scan`
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`date`	timestamp without timezone	No	The date and time at which the service was enumerated.
`service_id`	integer	No	The identifier of the service.	`dim_service`
`protocol_id`	smallint	No	The identifier of the protocol the service was utilizing.	`dim_protocol`
`port`	integer	No	The port the service was running on.
`service_fingerprint_id`	bigint	No	The identifier of the fingerprint of the service describing the configuration of the service.	`dim_service_fingerprint`
`credential_status_id`	smallint	No	The result of the user-provided credentials per asset per scan per service. Services for which credential status is assessed are: SNMP, SSH, Telnet and CIFS.	`dim_credential_status`

Dimensional model

Asset Scan Vulnerabilities

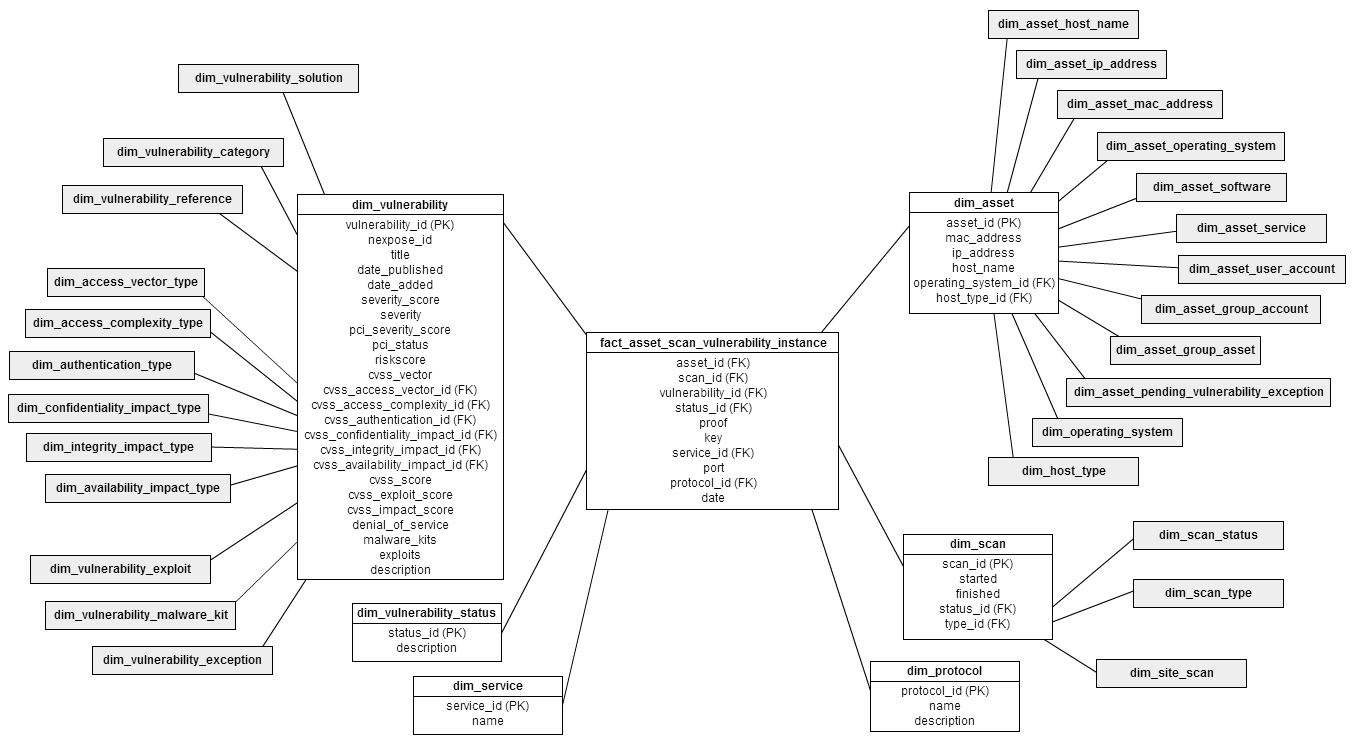

fact_asset_scan_vulnerability_instance

Level of Grain: A vulnerability instance on an asset in a scan.

Fact Type: transaction

Description: The fact_asset_scan_vulnerability_instance fact table provides the details of a vulnerability instance discovered during a scan of an asset. Only vulnerability instances found to be vulnerable and with no exceptions actively applied will be present within the fact table. A vulnerability instance is a unique vulnerability result found discovered on the asset. If the multiple occurrences of the same vulnerability are found on the asset, one row will be present for each instance.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scan_id`	bigin	No	The identifier of the scan.	`dim_scan`
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`vulnerability_id`	integer	No	The identifier of the vulnerability the finding is for.	`dim_vulnerability`
`date`	timestamp without timezone	No	The date and time at which the vulnerability finding was detected. This time is the time at which the asset completed scanning during the scan.
`status_id`	character(1)	No	The identifier of the status of the vulnerability finding that indicated the level of confidence in the finding.	`dim_vulnerability_status`
`proof`	text	No	The proof indicating the reason that the vulnerability exists. The proof is exposed in formatting markup that can be striped using the function proofAsText
`key`	text	Yes	The secondary identifier of the vulnerability finding that discriminates the result from similar results of the same vulnerability on the same asset. This value is optional and will be null when a vulnerability does not need a secondary discriminator.
`service_id`	integer	No	The service the vulnerability was discovered on, or -1 if the vulnerability is not associated with a service.	`dim_service`
`port`	integer	No	The port on which the vulnerable service was running, or -1 if the vulnerability is not associated with a service.
`protocol_id`	integer	No	The protocol the vulnerable service was running, or -1 if the vulnerability is not associate with a service.	`dim_protocol`

Dimensional model

fact_asset_scan_vulnerability_instance_excluded

Level of Grain: A vulnerability instance on an asset in a scan with an active vulnerability exception applied.

Fact Type: transaction

Description: The fact_asset_scan_vulnerability_instance_excluded fact table provides the details of a vulnerability instance discovered during a scan of an asset with an exception applied. Only vulnerability instances found to be vulnerable and with exceptions actively applied will be present within the fact table. If the multiple occurrences of the same vulnerability are found on the asset, one row will be present for each instance.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scan_id`	bigin	No	The identifier of the scan.	`dim_scan`
`asset_id`	bigint	No	The identifier of the asset.	`dim_asset`
`vulnerability_id`	integer	No	The identifier of the vulnerability the finding is for.	`dim_vulnerability`
`date`	timestamp without timezone	No	The date and time at which the vulnerability finding was detected. This time is the time at which the asset completed scanning during the scan.
`status_id`	character(1)	No	The identifier of the status of the vulnerability finding that indicated the level of confidence in the finding.	`dim_vulnerability_status`
`proof`	text	No	The proof indicating the reason that the vulnerability exists. The proof is exposed in formatting markup that can be striped using the function proofAsText
`key`	text	Yes	The secondary identifier of the vulnerability finding that discriminates the result from similar results of the same vulnerability on the same asset. This value is optional and will be null when a vulnerability does not need a secondary discriminator.
`service_id`	integer	No	The service the vulnerability was discovered on, or -1 if the vulnerability is not associated with a service.	`dim_service`
`port`	integer	No	The port on which the vulnerable service was running, or -1 if the vulnerability is not associated with a service.
`protocol_id`	integer	No	The protocol the vulnerable service was running, or -1 if the vulnerability is not associate with a service.	`dim_protocol`

Dimensional model

fact_asset_vulnerability

Note: This is a category so there is no table to view.

fact_asset_vulnerability_age

Added in version 1.2.0

Level of Grain: A vulnerability on an asset.

Fact Type: accumulating snapshot

Description: This fact table provides an accumulating snapshot for vulnerability age and occurrence information on an asset. For every vulnerability to which an asset is currently vulnerable, there will be one fact record. The record indicates when the vulnerability was first found, last found, and its current age. The age is computed as the difference between the time the vulnerability was first discovered on the asset, and the current time. If the vulnerability was temporarily remediated, but rediscovered, the age will be from the first discovery time. If a vulnerability was found on a service, remediated and discovered on another service, the age is still computed as the first time the vulnerability was found on any service on the asset.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The unique identifier of the asset.	`dim_asset`
`vulnerability_id`	integer	No	The unique identifier of the vulnerability.	`dim_vulnerability`
`age`	interval	No	The age of the vulnerability on the asset, in the interval format.
`age_in_days`	numeric	No	The age of the vulnerability on the asset, specified in days.
`first_discovered`	timestamp without timezone	No	The date on which the vulnerability was first discovered on the asset.
`most_recently_discovered`	timestamp without timezone	No	The date on which the vulnerability was most recently discovered on the asset.
`reintroduced_date`	timestamp without timezone	Yes	The date when the vulnerability was reintroduced on this asset after it was previously remediated.

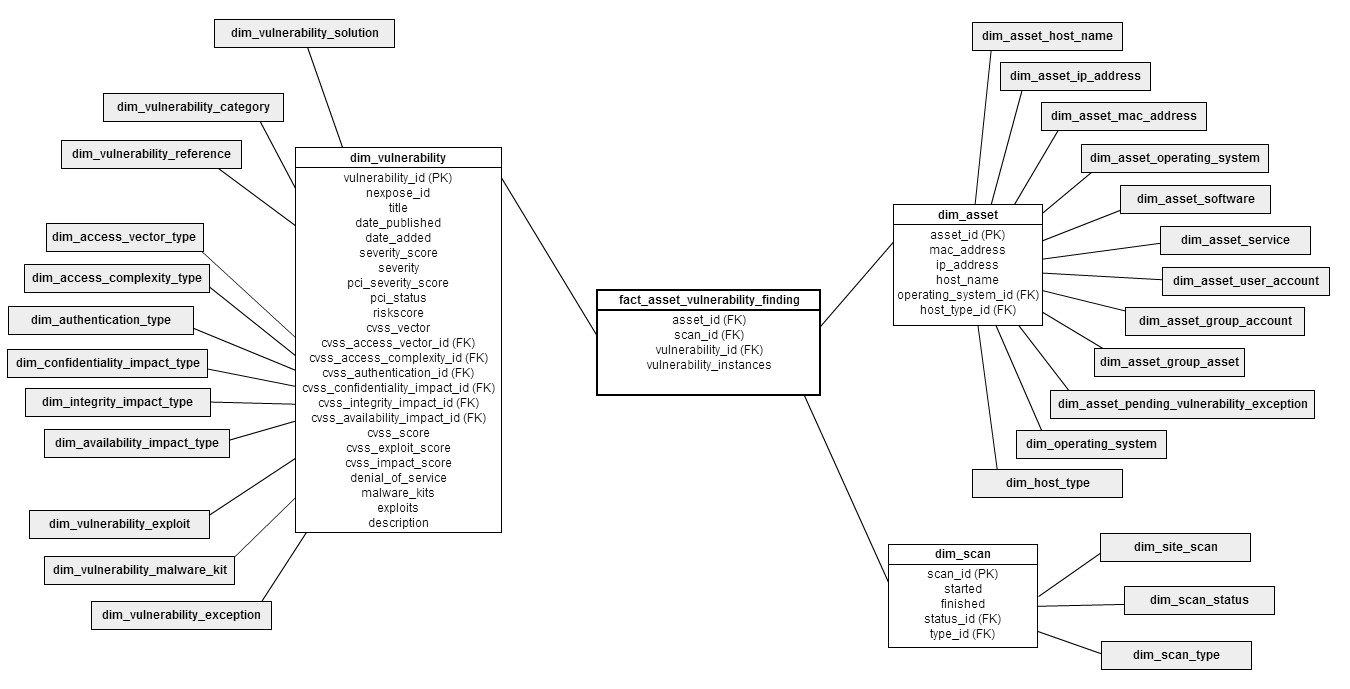

fact_asset_vulnerability_finding

Added in version 1.2.0

Level of Grain: A vulnerability finding on an asset.

Fact Type: accumulating snapshot

Description: This fact table provides an accumulating snapshot for all current vulnerability findings on an asset. This table will display a record for each unique vulnerability discovered on each asset in the most recent scan of the asset. If multiple occurrences of the same vulnerability are found on the asset, they will be rolled up into a single row with a vulnerability_instances count greater than one. Only vulnerabilities with no active exceptions applies will be displayed.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The unique identifier of the asset.	`dim_asset`
`scan_id`	bigint	No	The identifier of the last scan for the asset in which the vulnerability was detected.	`dim_scan`
`vulnerability_id`	integer	No	The unique identifier of the vulnerability.	`dim_vulnerability`
`vulnerability_instances`	bigint	No	The number of occurrences of the vulnerability detected on the asset, guaranteed to be greater than or equal to one.

Dimensional model

fact_asset_vulnerability_instance

Level of Grain: A vulnerability instance on an asset.

Fact Type: accumulating snapshot

Description: This table provides an accumulating snapshot for all current vulnerability instances on an asset. Only vulnerability instance found to be vulnerable and with no exceptions actively applied will be present within the fact table. If the multiple occurrences of the same vulnerability are found on the asset, a row will be present for each instance.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The unique identifier of the asset.	`dim_asset`
`scan_id`	bigint	No	The identifier of the last scan for the asset in which the vulnerability was detected.	`dim_scan`
`vulnerability_id`	integer	No	The unique identifier of the vulnerability.	`dim_vulnerability`
`vulnerability_exception_id`	integer	Yes	The unique identifier of a vulnerability exception that is pending for the vulnerability instance. If a vulnerability instance has no pending exceptions, this value will be null. If multiple pending exceptions apply to the vulnerability at different levels of scope, the identifier of the exception at the lowest (most fine-grained) level is returned.	`dim_vulnerability_exception`
`vulnerability_exception_ids`	integer	Yes	The unique identifiers of all vulnerability exceptions that are pending for the vulnerability instance. If a vulnerability instance has no pending exceptions, this value will be null. If multiple pending exceptions apply to the vulnerability at different levels of scope, then the the identifier of all exceptions will be returned in a comma-separated value string.	`dim_vulnerability_exception`
`date`	timestamp without timezone	No	The date and time at which the vulnerability finding was detected. This time is the time at which the asset completed scanning during the scan.
`proof`	text	No	The proof indicating the reason that the vulnerability exists. The proof is exposed in formatting markup that can be striped using the function proofAsText
`key`	text	Yes	The secondary identifier of the vulnerability finding that discriminates the result from similar results of the same vulnerability on the same asset. This value is optional and will be null when a vulnerability does not need a secondary discriminator.
`service_id`	integer	No	The service the vulnerability was discovered on, or -1 if the vulnerability is not associated with a service.	`dim_service`
`protocol_id`	integer	No	The protocol the vulnerable service was running, or -1 if the vulnerability is not associate with a service.	`dim_protocol`

Dimensional model

fact_asset_vulnerability_instance_excluded

Level of Grain: A vulnerability instance on an asset with an active vulnerability exception applied.

Fact Type: accumulating snapshot

Description: The fact_asset_vunerability_instance_excluded fact table provides an accumulating snapshot for all current vulnerability instances on an asset. If the multiple occurrences of the same vulnerability are found on the asset, a row will be present for each instance.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The unique identifier of the asset.	`dim_asset`
`vulnerability_id`	integer	No	The identifier of the vulnerability	`dim_vulnerability`
`date_tested`	timestamp without timezone	No	The date and time at which the vulnerability finding was detected. This time is the time at which the asset completed scanning during the scan.
`status_id`	character(1)	No	The identifier of the status of the vulnerability finding that indicates the level of confidence of the finding.	`dim_vulnerability_status`
`proof`	text	No	The proof indicating the reason that the vulnerability exists. The proof is exposed in formatting markup that can be striped using the function proofAsText
`key`	text	Yes	The secondary identifier of the vulnerability finding that discriminates the result from similar results of the same vulnerability on the same asset. This value is optional and will be null when a vulnerability does not need a secondary discriminator.
`service_id`	integer	No	The service the vulnerability was discovered on, or -1 if the vulnerability is not associated with a service.	`dim_service`
`port`	integer	No	The port on which the vulnerable service was running, or -1 if the vulnerability is not associated with a service.
`protocol_id`	integer	No	The protocol the vulnerable service was running, or -1 if the vulnerability is not associated with a service.	`dim_protocol`

Dimensional model

PCI Asset Scans

fact_pci_asset_scan

Note: This is a category so there is no table to view.

fact_pci_asset_scan_service_finding

Level of Grain: A service finding on an asset in a scan.

Fact Type: Transaction

Description: The fact_pci_asset_scan_service_finding table is the transaction fact for a service finding on an asset for a scan. This fact provides a record for each service on every asset within the scope of the report for every scan it was included in. The level of grain is a unique service finding. If no services were found on an asset in a scan, it will have no records in this fact table. For PCI purposes, each service finding is mapped to a vulnerability. Services for which a version was fingerprinted are mapped to an additional vulnerability.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The unique identifier of the asset	`dim_asset`
`scan_id`	bigint	No	The unique identifier of the scan the service finding was found in.	`dim_scan`
`service_id`	integer	No	The identifier of the definition of the service.	`dim_service`
`vulnerability_id`	integer	No	The unique identifier of the vulnerability.	`dim_vulnerability`
`protocol_id`	smallint	No	The identifier of the protocol the service was utilizing	`dim_protocol`
`port`	integer	No	The port the service was running on.

fact_pci_asset_service_finding

Added in version 1.3.2

Level of Grain: A service finding on an asset from the latest scan of the asset.

Fact Type: Accumulating snapshot

Description: The fact_pci_asset_service_finding fact table provides an accumulating snapshot fact for all service findings on an asset for the latest scan of every asset. The level of grain is a unique service finding. If no services were found on an asset in a scan, it will have no records in this fact table. For PCI purposes, each service finding is mapped to a vulnerability. Services for which a version was fingerprinted are mapped to an additional vulnerability.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The unique identifier of the asset	`dim_asset`
`scan_id`	bigint	No	The unique identifier of the scan the service finding was found in.	`dim_scan`
`service_id`	integer	No	The identifier of the definition of the service.	`dim_service`
`vulnerability_id`	integer	No	The unique identifier of the vulnerability.	`dim_vulnerability`
`protocol_id`	smallint	No	The identifier of the protocol the service was utilizing	`dim_protocol`
`port`	integer	No	The port the service was running on.

fact_pci_asset_special_note

Added in version 1.3.2

Level of Grain: A note finding on a vulnerability or service on an asset (plus port and protocol, if applicable) from the latest scan of the asset.

Fact Type: Accumulating snapshot

Description: The fact_pci_asset_special_note fact table provides an accumulating snapshot fact for all vulnerability or service findings with applied special notes on an asset for the latest scan of every asset. The level of grain is a unique vulnerability or service finding, determined by asset, port and protocol.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`asset_id`	bigint	No	The unique identifier of the asset	`dim_asset`
`scan_id`	bigint	No	The unique identifier of the scan the service finding was found in.	`dim_scan`
`service_id`	integer	No	The identifier of the definition of the service.	`dim_service`
`protocol_id`	smallint	No	The identifier of the protocol the service was utilizing	`dim_protocol`
`port`	integer	No	The port the service was running on.
`pci_note_id`	integer	No	The unique identifier of the pci special note applied to the vulnerability or service finding.	`dim_pci_note`
`items_noted`	text	No	A list of distinct identifiers for findings on a given asset, port, and protocol.

Policy

fact_policy

Level of Grain: A summary of findings related to a policy.

Fact Type: accumulating snapshot

Description: This table provides a summary for the results of the most recent policy scan for assets within the scope of the report. For each policy, only assets that are subject to that policy’s rules and that have a result in the most recent scan with no overrides are counted.

As of version 1.3.0, a separate value has been created for not_applicable_assets and is no longer included in compliant_assets.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`policy_id`	bigint	No	The identifier of the policy	`dim_policy`
`scope`	text	No	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.
`rule_compliance`	numeric	No	The ratio of policy rule test result that are compliant or not applicable to the total number of rule test results.
`total_assets`	bigint	No	The number of assets within the scope of the report that were tested for the policy.
`compliant_assets`	bigint	No	the number of assets that did not fail but passed at least a rule within the policy in the last test.
`non_compliant_assets`	bigint	No	The number of assets that failed at least one rule within the policy in the last test.
`not_applicable_assets`	bigint	No	The number of assets that neither passed nor failed at least a rule within the policy in the last test.
`asset_compliance`	numeric	No	The ratio of assets that are compliant with the policy to the total number of assets that were tested for the policy.

Dimensional model

fact_policy_group

Level of Grain: A summary of findings related to a policy group.

Fact Type: accumulating snapshot

Description: This table provides a summary for the group rules’s results of the most recent policy scan for assets within the scope of the report. All rules that are directly or indirectly descend from it and are counted.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scope`	text	No	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.
`policy_id`	bigint	No	The identifier of the policy.	`dim_policy`
`group_id`	bigint	No	The identifier of the policy group.	`dim_policy_group`
`non_compliant_rules`	integer	No	The number of rules that doesn’t have 100% asset compliance (taking into account policy rule overrides.)
`compliant_rules`	integer	No	The number of rules that have 100% asset compliance (taking into account policy rule overrides.)
`rule_compliance`	numeric	Yes	The ratio of rule test result that are compliant or not applicable to the total number of rule test results within the policy group. If the group has no rule or no testable rules (rule with no check, hence no result exists), this will have a null value.

Dimensional model

fact_policy_rule

Level of Grain: A summary of findings related to a policy rule.

Fact Type: accumulating snapshot

Description: This table provides a summary for the rule results of the most recent policy scan for assets within the scope of the report. For each rule, only assets that are subject to that rule and that have a result in the most recent scan are counted.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scope`	text	No	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.
`policy_id`	bigint	No	The identifier of the policy.	`dim_policy`
`rule_id`	bigint	No	The identifier of the policy rule.	`dim_policy_rule`
`compliant_assets`	integer	No	The number of assets that are compliant with the rule (taking into account policy rule overrides.)
`non_compliant_assets`	integer	No	The number of assets that are not compliant with the rule (taking into account policy rule overrides.)
`not_applicable_assets`	integer	No	The number of assets that are not applicable for the rule (taking into account policy rule overrides.)
`asset_compliance`	numeric	No	The ratio of assets that are compliant with the policy rule to the total number of assets that were tested for the policy rule.

Dimensional model

Fact Remediation

fact_remediation (count, sort_column)

Level of Grain: A solution with the highest level of supersedence and the effect applying that solution would have on the scope of the report.

Fact Type: accumulating snapshot

Description: A function which returns a result set of the top “count” solutions showing their impact as specified by the sorting criteria. The criteria can be used to find solutions that have a desirable impact on the scope of the report, and can be limited to a subset of all solutions. The aggregate effect of applying each solution is computed and returned for each record. Only the highest-level superseding solutions will be selected, in other words, only solutions which have no superseding solution.

Arguments

Column	Data Type	Description
`count`	integer	The number of solutions to limit the output of this function to. The sorting and aggregation are performed prior to the limit.
`sort_column`	text	The name and sort order of the column to sort results by. Any column within the fact can be used to sort the results prior to them being limited. Multiple columns can be sorted using a traditional SQL fragment (Example: ‘assets DESC, exploits DESC’).

Columns

Column	Data Type	Nullable	Description
`solution_id`	integer	No	The identifier of the solution.
`assets`	bigint	No	The number of assets that require the solution to be applied. If the solution applies to a vulnerability not detected on any asset, the value may be zero.
`vulnerabilities`	numeric	No	The total number of critical vulnerabilities that would be remediated.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities found of the asset during the scan.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities found of the asset during the scan.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities found of the asset during the scan.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered during the scan.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered during the scan.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered during the scan.
`vulnerabilities_with_exploits`	integer	No	The number of vulnerabilities with a known exploit discovered during the scan.
`vulnerability_instances`	bigint	No	The number of vulnerability instances found discovered during the scan.
`riskscore`	double precision	No	The risk score for the scan.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.

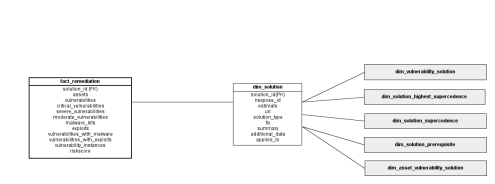

Dimensional model

fact_remediation_impact (count, sort_column)

Added in version 1.1.0

Level of Grain: A solution with the highest level of supersedence and the effect applying that solution would have on the scope of the report.

Fact Type: accumulating snapshot

Description: Fact that provides a summarization of the impact that applying a subset of all remediations would have on the scope of the report. The criteria can be used to find solutions that have a desirable impact on the scope of the report, and can be limited to a subset of all solutions. The aggregate effect of applying all solutions is computed and returned as a single record. This fact will be guaranteed to return one and only one record.

Arguments

Column	Data Type	Description
`count`	integer	The number of solutions to limit the output of this function to. The sorting and aggregation are performed prior to the limit.
`sort_column`	text	The name and sort order of the column to sort results by. Any column within the fact can be used to sort the results prior to them being limited. Multiple columns can be sorted using a traditional SQL fragment (Example: ‘assets DESC, exploits DESC’).

Columns

Column	Data Type	Nullable	Description
`solutions`	integer	No	The number of solutions selected and for which the remediation impact is being summarized (will be less than or equal to count).
`assets`	bigint	No	The number of assets that require the solution to be applied. If the solution applies to a vulnerability not detected on any asset, the value may be zero.
`vulnerabilities`	numeric	No	The total number of critical vulnerabilities that would be remediated.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities found of the asset during the scan.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities found of the asset during the scan.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities found of the asset during the scan.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered during the scan.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered during the scan.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered during the scan.
`vulnerabilities_with_exploits`	integer	No	The number of vulnerabilities with a known exploit discovered during the scan.
`vulnerability_instances`	bigint	No	The number of vulnerability instances found discovered during the scan.
`riskscore`	double precision	No	The risk score for the scan.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.

Dimensional model

fact_scan

Level of Grain: A summary of the results of a scan.

Fact Type: accumulating snapshot

Description: The fact_scan fact provides the summarized information for every scan any asset within the scope of the report was scanned during. For each scan, there will be a record in this fact table with the summarized results.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`scan_id`	integer	No	The identifier of the scan.	`dim_scan`
`assets`	bigint	No	The number of assets that require the solution to be applied. If the solution applies to a vulnerability not detected on any asset, the value may be zero.
`vulnerabilities`	numeric	No	The total number of critical vulnerabilities that would be remediated.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities found of the asset during the scan.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities found of the asset during the scan.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities found of the asset during the scan.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered during the scan.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered during the scan.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered during the scan.
`vulnerabilities_with_exploits`	integer	No	The number of vulnerabilities with a known exploit discovered during the scan.
`vulnerability_instances`	bigint	No	The number of vulnerability instances found discovered during the scan.
`riskscore`	double precision	No	The risk score for the scan.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.

Dimensional model

Sites

fact_site

Level of Grain: A summary of the current state of a site.

Fact Type: accumulating snapshot

Description: The fact_site table provides a summary record at the level of grain for every site that any asset in the scope of the report belongs to. For each site, there will be a record in this fact table with the summarized results, taking into account any vulnerability filters specified in the report configuration. The summary of each site will display the accumulated information for the most recent scan of each asset, not just the most recent scan of the site.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`site_id`	integer	No	The identifier of the site.	`dim_site`
`assets`	bigint	No	The number of assets that require the solution to be applied. If the solution applies to a vulnerability not detected on any asset, the value may be zero.
`last_scan_id`	bigint	No	The identifier of the most recent scan for the site.
`vulnerabilities`	numeric	No	The total number of critical vulnerabilities that would be remediated.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities found of the asset during the scan.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities found of the asset during the scan.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities found of the asset during the scan.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered during the scan.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered during the scan.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered during the scan.
`vulnerabilities_with_exploits`	integer	No	The number of vulnerabilities with a known exploit discovered during the scan.
`vulnerability_instances`	bigint	No	The number of vulnerability instances found discovered during the scan.
`riskscore`	double precision	No	The risk score for the scan.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.

Dimensional model

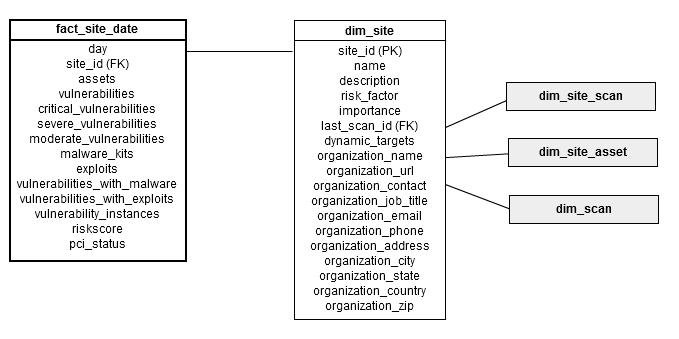

fact_site_date (startDate, endDate, dateInterval)

Added in version 1.1.0

Level of Grain: A site and its summary information on a specific date.

Fact Type: periodic snapshot

Description: This fact table provides a periodic snapshot for summarized values on a site by date. The fact table takes three dynamic arguments, which refine what data is returned. Starting from startDate and ending on endDate, a summarized value for each site in the scope of the report will be returned for every dateInterval period of time. This will allow trending on site information by a customizable interval of time. In terms of a chart, startDate represents the lowest value in the range, the endDate the largest value in the range, and the dateInterval is the separation of the ticks of the range axis. If a site did not exist prior to a summarization date, it will have no record for that date value. The summarized values of a site represent the state of the site in the most recent scans prior to the date being summarized; therefore, if a site has not been scanned before the next summary interval, the values for the site will remain the same. For example, fact_site_date(‘2013-01-01’, ‘2014-01-01’, INTERVAL ‘1 month’) will return a row for each site for every month in the year 2013.

Arguments

Column	Data Type	Description
`startDate`	date	The first date to return summarizations for
`endDate`	date	The last date to return summarizations for.
`dateInterval`	interval	The interval between the start and end dates to return summarizations for.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`site_id`	integer	No	The identifier of the site.	`dim_site`
`assets`	bigint	No	The number of assets that require the solution to be applied. If the solution applies to a vulnerability not detected on any asset, the value may be zero.
`last_scan_id`	bigint	No	The identifier of the most recent scan for the site.
`vulnerabilities`	numeric	No	The total number of critical vulnerabilities that would be remediated.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities found of the asset during the scan.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities found of the asset during the scan.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities found of the asset during the scan.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered during the scan.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered during the scan.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered during the scan.
`vulnerabilities_with_exploits`	integer	No	The number of vulnerabilities with a known exploit discovered during the scan.
`vulnerability_instances`	bigint	No	The number of vulnerability instances found discovered during the scan.
`riskscore`	double precision	No	The risk score for the scan.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.
`day`	date	No	The date of the summarization of the asset.

Dimensional model

fact_site_policy_date

Added in version 1.3.0

Fact Type: Periodic snapshot

Description: This fact table provides a periodic snapshot for summarized policy values on site by date. The fact table takes three dynamic arguments, which refine what data is returned. Starting from startDate and ending on endDate, the summarized policy value for each site in the scope of the report will be returned for every dateInterval period of time. This will allow trending on site information by a customizable interval of time. In terms of a chart, startDate represents the lowest value in the range, the endDate the largest value in the range, and the dateInterval is the separation of the ticks of the range axis. If a site did not exist prior to a summarization date, it will have no record for that date value. The summarized policy values of a site represent the state of the site prior to the date being summarized; therefore, if the site has not been scanned before the next summary interval, the values for the site will remain the same.

Arguments

Column	Data Type	Description
`startDate`	date	The first date to return summarizations for
`endDate`	date	The last date to return summarizations for.
`dateInterval`	interval	The interval between the start and end dates to return summarizations for.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`site_id`	bigint	Yes	The unique identifier of the site.	`dim_site`
`day`	date	No	The date when the summarized policy scan results snapshot is taken.
`policy_id`	bigint	Yes	The unique identifier of the policy.	`dim_site`
`scope`	text	Yes	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.	`dim_site`
`assets`	integer	Yes	The total number of assets that are in the scope of the report and associated to the asset group.
`rule_compliance`	numeric	No	The ratio of policy rule test result that are compliant or not applicable to the total number of rule test results.
`compliant_assets`	bigint	No	the number of assets that did not fail but passed at least a rule within the policy in the last test.
`non_compliant_assets`	bigint	No	The number of assets that failed at least one rule within the policy in the last test.
`not_applicable_assets`	bigint	No	The number of assets that neither passed nor failed at least a rule within the policy in the last test.

Column	Data Type	Nullable	Description	Associated Dimension
`tag_id`	integer	No	The identifier of the tag.	`dim_tag`
`assets`	bigint	No	The number of assets that require the solution to be applied. If the solution applies to a vulnerability not detected on any asset, the value may be zero.
`vulnerabilities`	numeric	No	The total number of critical vulnerabilities that would be remediated.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities found of the asset during the scan.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities found of the asset during the scan.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities found of the asset during the scan.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered during the scan.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered during the scan.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered during the scan.
`vulnerabilities_with_exploits`	integer	No	The number of vulnerabilities with a known exploit discovered during the scan.
`vulnerability_instances`	bigint	No	The number of vulnerability instances found discovered during the scan.
`riskscore`	double precision	No	The risk score for the scan.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.

Column	Data Type	Nullable	Description	Associated Dimension
`tag_id`	integer	No	The identifier of the tag.	`dim_tag`
`day`	date	No	The date the summary tag results are for.
`assets`	bigint	No	The number of assets that require the solution to be applied. If the solution applies to a vulnerability not detected on any asset, the value may be zero.
`vulnerabilities`	numeric	No	The total number of critical vulnerabilities that would be remediated.
`critical_vulnerabilities`	bigint	No	The number of critical vulnerabilities found of the asset during the scan.
`severe_vulnerabilities`	bigint	No	The number of severe vulnerabilities found of the asset during the scan.
`moderate_vulnerabilities`	bigint	No	The number of moderate vulnerabilities found of the asset during the scan.
`malware_kits`	integer	No	The number of malware kits associated with vulnerabilities discovered during the scan.
`exploits`	integer	No	The number of exploits associated with vulnerabilities discovered during the scan.
`vulnerabilities_with_malware_kit`	integer	No	The number of vulnerabilities with a known malware kit discovered during the scan.
`vulnerabilities_with_exploits`	integer	No	The number of vulnerabilities with a known exploit discovered during the scan.
`vulnerability_instances`	bigint	No	The number of vulnerability instances found discovered during the scan.
`riskscore`	double precision	No	The risk score for the scan.
`pci_status`	text	No	The PCI compliance status; either Pass or Fail.

Column	Data Type	Nullable	Description	Associated Dimension
`tag_id`	bigint	Yes	The unique identifier of the tag.	`dim_tag`
`day`	date	No	The date which the summarized policy scan results snapshot is taken.
`policy_id`	bigint	Yes	The unique identifier of the policy within a scope.	`dim_policy`
`scope`	text	Yes	The identifier for scope of policy. Policies that are automatically available have “Built-in” scope, whereas policies created by users have scope as “Custom”.
`assets`	integer	Yes	The total number of assets that are in the scope of the report and associated to the asset group.
`rule_compliance`	numeric	No	The ratio of policy rule test result that are compliant or not applicable to the total number of rule test results.
`compliant_assets`	bigint	No	the number of assets that did not fail but passed at least a rule within the policy in the last test.
`non_compliant_assets`	bigint	No	The number of assets that failed at least one rule within the policy in the last test.
`not_applicable_assets`	bigint	No	The number of assets that neither passed nor failed at least a rule within the policy in the last test.

Vulnerabilities

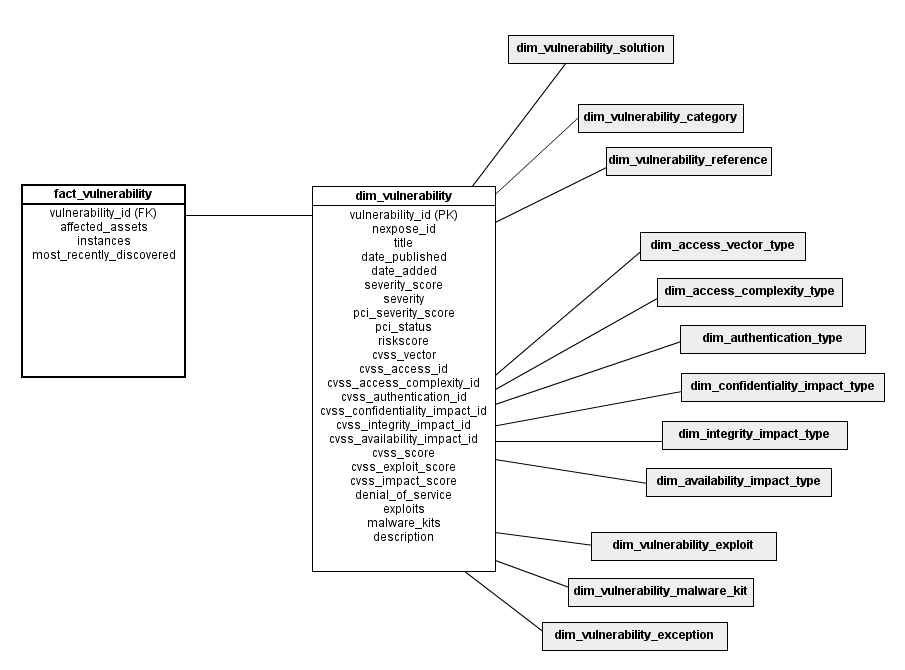

fact_vulnerability

Level of Grain: A summary of findings of a vulnerability.

Fact Type: accumulating snapshot

Description: The fact_vulnerability table provides a summarized record for each vulnerability within the scope of the report. For each vulnerability, the count of assets subject to the vulnerability is measured. Only assets with a finding in their most recent scan with no exception applied are included in the totals.

Columns

Column	Data Type	Nullable	Description	Associated Dimension
`vulnerability_id`	integer	No	The identifier of the vulnerability.	`dim_vulnerability`
`affected_assets`	bigint	No	The number of assets that have the vulnerability. This count may be zero if no assets are vulnerable.
`vulnerability_instances`	bigint	No	The number of instances or occurrences of the vulnerability across all assets.
`most_recently_discovered`	timestamp without timezone	No	The most recent date and time at which any asset within the scope of the report was discovered to be vulnerable to the vulnerability.

Dimensional model

Understanding the reporting data model: Facts

Understanding facts

Common measures

Fact_all

Columns

Columns

Arguments

Columns

Columns

Asset Groups

Columns

Arguments

Columns

Arguments

Columns

Asset Policy

Columns

Arguments

Columns

Columns

Asset Scans

Columns

Columns

Columns

Columns

Columns

Asset Scan Vulnerabilities

fact_asset_scan_vulnerability_finding

Columns

Columns

fact_asset_vulnerability_age

Columns

Columns

Columns

Columns

PCI Asset Scans

fact_pci_asset_scan_service_finding

Columns

Columns

Columns

Policy

Columns

Columns

Columns

Fact Remediation

Arguments

Columns

Arguments

Columns

Columns

Sites

Columns

Arguments

Columns

Arguments

Columns

Tags

Columns

Arguments

Columns

Arguments

Columns

Vulnerabilities

Columns
